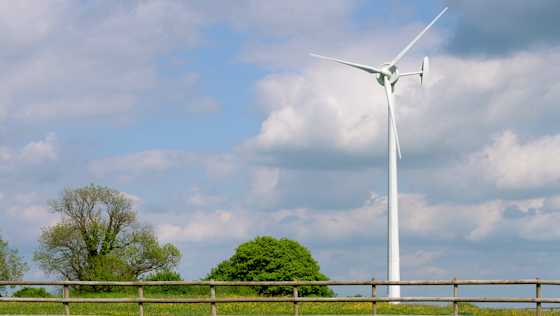

H11
An 11kW wind turbine designed to give exceptional performance at lower wind speeds. Can produce 37,000-48,000kWh/yr depending on location. Click here to find out more.
H15 15kW horizontal axis wind turbine
The Britwind H15 is a state-of-the-art small wind turbine, designed by the same team that developed the market leading Britwind R9000 (H5) wind turbine.
The whole concept of the Britwind H15 has been engineered with robustness, high reliability and low maintenance in mind, with minimal wearing parts and no gearbox. The turbine also has a class leading performance to installed cost ratio.
The 15kW turbine is designed for the windiest sites (over 7m/s AMWS at turbine hub height). For lower wind speed areas, the H11 will be more suitable.
Applications
Domestic
Agricultural
Industrial
Commercial
Micro grids
Specifications
| Architecture | Upwind, 3 bladed rotor, self-regulating |
| Nominal power | 15kW, reached at 11.5m/s (20kW inverter version) |
| BWEA reference power | 15kW, reached at 11.5m/s (20kW inverter version) |
| Annual energy yield | 31,406 kWh with annual mean wind speed (AMWS) = 5m/s (20kW inverter version) |
| Cut-in wind speed | 3m/s (6.7mph) |
| Cut-out wind speed | 17m/s (38.0mph) |
| Survival wind speed | 60m/s (134mph) |
| IEC turbine class | IEC 61400-2 to Class II |
| Nacelle weight | 1,450kg |
| Control system | Stall regulated |
| Rotor | Diameter: 10.4m (34'1") |
| Rotor speed | 100rpm nominal |
| Blade | Glass-fibre reinforced plastic with T-bolt root fittings |
| Generator | Patented brushless direct drive, air-cored high efficiency radial flux permanent magnet alternator |
| Gearbox | None |
| Braking | Two independant brake systems: Electrical brake and aerodynamic brake |
| Yaw control | Passive tail vane and rotor. |
| Tower | Free-standing monopole with, hydraulic ram. Monopole, 14.5m (47'7") |
| Tower Foundation | Reinforced concrete pad & screw pile options |
| Design longevity | 20 years minimum with regular service inspection |
| Noise | Declared sound power level at 8m/s = 89.9 dB(A) |
| Operating temp range | -20°C - +50°C |
| Warranty | 2 years |
Estimated Energy Yield
| Annual Mean Wind Speed at turbine hub height (m/s) | Estimated Annual Energy Yield (kWh) |
|---|---|
| 4 | Out of class – see H11 |
| 5 | Out of class – see H11 |
| 6 | 42,363 |
| 7 | 55,061 |
| 8 | 65,500 |
